| Screwdriver Bit's Color Ring Coating Machine RIH-01 |
|

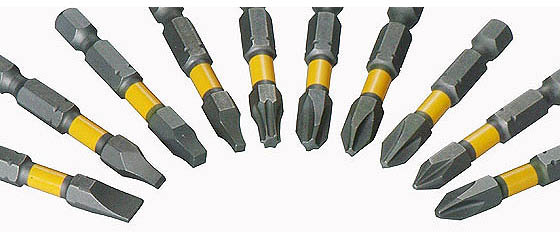

| Screwdriver Head's Color Ring Coating Machine RIH-01( It belongs to the model of Transfer-printing Machine ) is designed for screwdrivers and circular surface components to coat color rings, the coating film thickness can be adjusted according to needs, and the color film degree is evenly controlled. The RIH-01 automated manufacturing process includes feeding, embryo orientation, coating, and curing procedures. In addition, there are auxiliary functions such as metering, sub-packing (packaging production line), etc., which fully achieve the high efficiency of production automation. The monitoring system is very complete, one person can operate 5~6 machines. Without switching specifications, more than a dozen specifications can be produced at the same time, covering a wide range. |
|
 |
 |
|
| • |
Can directly coat the same series of screw bits with the same length and different shapes without adjusting any device. |
| • |
This equipment can completely cure the coated product. |
| • |
Equipped with an ink replenishing device to replenish ink automatically. |
| • |
This equipment can be equipped with an automatic cleaning module to remove oil stains on the screw bit. (Optional) |
|
 |
 |
|
 |
| RIH-01 Screwdriver Bit's Color Ring Coating Machine |
 |
| Applicable component sizes |
Ø 1 inch ~ Ø 2 inch
(Other specifications can be customized) |
| Capacity |
Max. 36 pcs/min (Including curing process) |
| Coating Material |
Thermal baking oil ink |
| Curing |
Thermal baking curing module |
| Size (L*W*H) |
340 * 120 * 250 cm |
| Weight |
Host 900kg, Curing equipment 300kg |
| Power Supply |
3Ø , AC 230V, 60 Hz |
| Air Pressure |
4 ~ 6 kg / c㎡ |
|
 |
|
|
 |
|
The RIH-01 automatic coating machine is designed for coating color rings on screwdriver heads and circular surfaces of components. The film thickness can be adjusted according to needs, and the color film degree can be controlled evenly. |
|
|
|
|
 |
|
| We provide a complete consumable supply system, including : |
• Letter molds
• Rollers
• Ink cup |
|
|
|
 |
|
 |
 |
|
